MegaJET

Full-coverage UST cleaning

Today's fuels are less stable and breakdown over time, allowing contaminants to thrive in storage tanks. Without proper cleaning, tanks are susceptible to the build up of sludge, loss of capacity and contamination. In addition, tanks must be cleaned prior to inspection, maintenance, decommissioning, transportation as well as any product changeover. With the MegaJET system, you can clean an entire UST in less than half an hour, regardless of the reason.

The MegaJET System utilizes a GJ 10 which can fit through a standard 4 in. (100 mm) opening. In using Alfa Laval's rotary impingement tank cleaning, the MegaJET will clean tanks thoroughly up to 30,000 gallons (130,000 l) in capacity, from one drop. Snaking or manual entry often fails to clean the top-half of the tank.

The system is designed to utilize the diesel or other class II fuels as the cleaning agent, therefore requiring no water. Equipped with a series of filters, the system will capture all bulk sludge as well as the finer particulates, therefore leaving both a clean tank and polished fuel. This system is not to be used with water or gasoline.

Contact our experts

Request a quote or ask about a tank cleaning solution

Product benefits

Fast: Clean any UST in under 30 minutes
Clean the entire UST, including the top half
No waste: Uses the fuel to clean the tank
Polishes the fuel while cleaning

Features

Pump/Motor

4.3 HP Gas-driven motor
Self priming gear pump

Filtration

Basket Strainer (Reusable)
RCI Purifier (Reusable)
Micron Cartridge Filter (Disposable)

Overall Dimensions

Cart 1: 61” x 32” x 42” H (1.50 x 0.80 x 1.00 H m)
Cart 2: 81” x 45” x 70” H (2.00 x 1.10 x 1.75 H m)
Weight: Approx. 1000 lbs (450 kg)

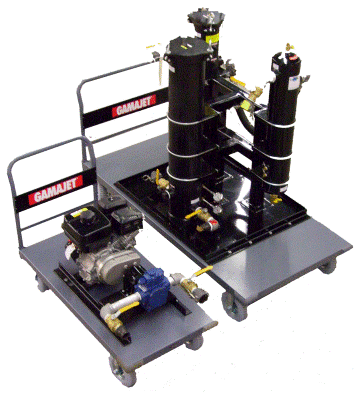

Components:

GJ 10 on a 6 ft. (1.8 m) lance
Pump cart with pressure boosting pump for supply and discharge
Filtration cart for polishing
Discharge container for sludge (recommended but not Included)
2 cart connection hoses - 10 ft. long

Operating Range

Pressure: 60 - 70 psi (4 - 5 bar)
Flow Rate: 40 to 50 gpm (150 to 190 lpm)
Temperature: 32° to 250°F (0° to 121°C)
Cleaning Radius: 35 ft. (10 m)
Wash Cycle Time: 7-9 min.
Impact: up to 25 lbs (11.5 kg)

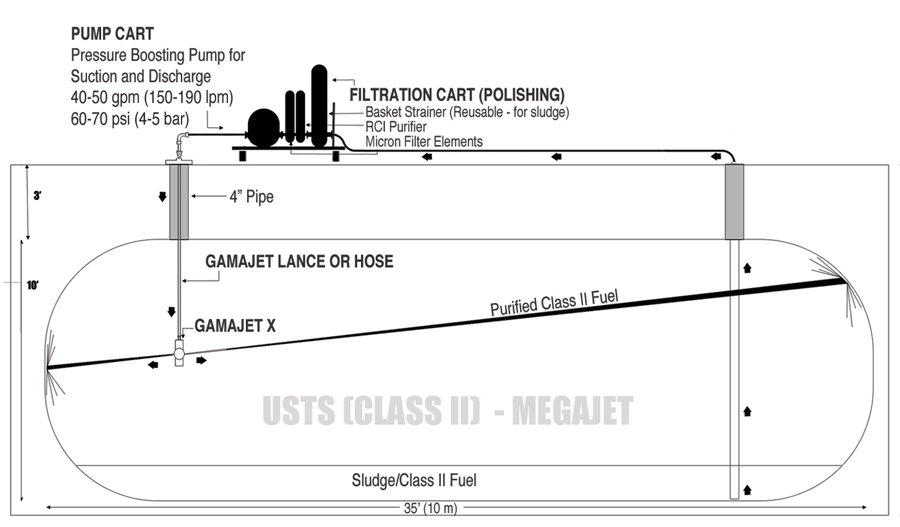

How it works

Class II fuel and sludge are suctioned from the tank through a hose or lance (not supplied with system) by the pressure boosting pump, and passed through a series of filters to remove the sludge and particulates, producing a polished fuel which then continues through the pump and the Gamajet X on to the tank walls, blasting residue from the surface in a precise global-indexing pattern, creating a closed loop cleaning circuit with a cycle time of 7-9 minutes.
