Full tank cleaning product line

Large tanks

Tank size: 12 to 100 ft. (4 to 60 m)
Capacity: 8,000 to 1.5 million gallons (30,000 to 5.6 million liters)

Impact: Up to 85 lbs at 25 ft. (39 kg at 7.5 m)
Cleaning Range: 100 ft.(30 m)
Pressure: 40-300 psi (3-20 bar)
Flow: 30-320 gpm (115-1210 lpm)
Clearance: 6.7 in. (170mm)
Cycle Time: 8-30+ min.
- Self Cleaning and Draining
- Directional Option
- Horizontally oriented option with the Sidewinder Horizontal Cleaner

Impact: Up to 40 lbs at 25 ft. (18 kg at 7.5 m)
Cleaning Range: 35 ft. (10.5 m)
Pressure: 40-400+ psi (3-28+ bar)
Flow: 25-130 gpm (95-490 lpm)
Clearance: 4.75 in. (121 mm)
Cycle Time: 8-12 min.
- Self Cleaning and Draining
- Directional Option
- Horizontally oriented option with the Sidewinder Horizontal Cleaner

Impact: Up to 25 lbs at 25 ft. (12 kg at 7.5 m)
Cleaning Range: 35 ft. (10 m)
Pressure: 40-300 psi (4-20 bar)
Flow: 40-80 gpm (150-300 lpm)
Clearance: 4 in. (102 mm)
Cycle Time: 8-15 min.
- Fits Through a Standard UST Pipe

Impact: Up to 85 lbs at 25 ft. (39 kg at 7.5 m)
Cleaning Range: 100 ft.(30 m)
Pressure: 40-300 psi (3-20 bar)
Flow: 30-320 gpm (115-1210 lpm)
Clearance: 7.0 in. (178 mm)
Cycle Time: 8-30+ min.
- Self cleaning and draining
- Longer uptime
- Longer product life

Impact: Up to 40lbs at 25'
Cleaning Range: 35' (10.5m)
Pressure: 20-1000 psi (3-70 bar)
Flow: 25-130 gpm (95-490 lpm)
Clearance: 4.75" (121mm)
Cycle Time: 8-12 min.
Self Cleaning and Draining

Impact: Up to 25 lbs at 25 ft. (11.5 kg at 7.5 m)
Cleaning Range: 30 ft. (9 m)
Pressure: 40-400+ psi (3-28+ bar)
Flow: 20-120 gpm (75-450 lpm)
Clearance: 3.80 in. (97 mm)
Cycle Time: 8-20 min.

Impact: Up to 25 lbs at 25 ft. (11.5 kg at 7.5 m)
Cleaning Range: 30 ft. (9 m)
Pressure: 40-400 psi (3-28 bar)
Flow: 20-100 gpm (75-380 lpm)
Clearance: 3.8 in. (98 mm) minimum
Cycle Time: 8-20 min.

Pressure: 3 bar (44 psi)

Constructed of a slide-bearing PEEK design (3-A compliant), this rotary spray head is available in 360° and 270° up and provides liquid impact at a low flow rate and low pressure.

- 3D indexed impact cleaning over a defined period
- Automatic
- Best-in-class in hygienic design and tank cleaning performance

Mid-sized tanks

Size: 2.5 to 12 ft. (.75 to 4 m)
Capacity: 275 and 8,000 gallons (1,000 to 30,000 liters)

Impact: Up to 7lbs at 5 ft. (3kg at 1.5 m)
Cleaning Range: 10 ft. (3 m)
Pressure: 50-100+ psi (4-7 bar)
Flow: 6-20 gpm (25-75 lpm)
Clearance: 2 in. (50 mm)
Cycle Time: 4-20 min.
- Fits through Standard 2 in. ASTs

Impact: Up to 7 lbs at 5 ft. (3 kg at 1.5 m)
Cleaning Range: 7.5 ft. (2.5 m)
Pressure: 40-200+ psi (3-14 bar)
Flow: 5-30 gpm (20-110 lpm)
Clearance: 1.85 in. (47 mm)
Cycle Time: 4-20 min.

Impact: Up to 10 lbs at 5 ft. (4.5 kg at 1.5 m)
Cleaning Range: 5 ft. (1.5 m)
Pressure: 30-400 psi (2-27 bar)
Flow: 5-35 gpm (20-130 lpm)
Clearance: 2.8 in. (71 mm)
Cycle Time: 10-14 min.

Single nozzle tank cleaning machine designed for installations onboard chemical and product tankers as well as offshore applications.

Single-nozzle tank cleaning machine for use aboard chemical carriers, product carriers and bulk carriers, as well as in tanks used on offshore installations.

- Suitable for tanks, reactors, vessels and other containers ranging from 1,300 - 13,000 gallons

 - Suitable for tanks, reactors, vessels and other containers ranging from 27 - 2,700 gallons

Pressure*: 2 bar (29 psi)
- Stainless steel or a slide-bearing PEEK design
- Available in 360° and 270° up
- Provides liquid impact at a low flow rate and low pressure
- 3-A compliant version available

- Self-cleaning, self-draining design
- Drive mechanism located outside of the tank
- Suitable to clean highly viscous or foaming debris from the interior of tanks and vessels between 130 and 8000 gallons.

- Suitable for processing, mixing and storage tanks and vessels between 4,000 and 40,000 gallons.
- Ideal for ultra-hygienic industries that follow European Hygienic Engineering & Design Group Guidelines.

- Meets the highest standards of efficiency, reliability and hygiene
- Ideal for processing, storage and transportation tanks between 4,000 and 40,000 gallons
- Available in a retractable version

Small tanks

Tank size: 2.5 ft. (.75 m)
Capacity: 275 gallons (1000 liters)

Impact: Up to 5 lbs at 2.5 ft. (2.5 kg at 1 m)
Cleaning Range: 2.5 ft. (1 m)
Pressure: 50-1200 psi (4-80 bar)
Flow: 2-8 gpm (8-30 lpm)
Clearance: 1.5 in. (38 mm)
Cycle Time: 2-5 min.
-The smallest rotary impingement tank cleaner

Impact: Up to 5 lbs at 2.5 ft. (2.5 kg at 1 m)
Cleaning Range: 2.5 ft. (1 m)
Pressure: 80-1000 psi (5-80 bar)
Flow: 3.5-6 gpm (13-23 lpm)
Clearance: 1.75 in. (55 mm)
Cycle Time: 2-4 min.
- Ideal for wine barrel and drum cleaning

Pressure*: 2 bar (29 psi)
- Constructed of stainless steel
- Available in 360°, 270° up, and 180° down
- Provides liquid impact at a low flow rate and low pressure

Pressure*: 2 bar (29 psi)
- Stainless steel or a slide-bearing PEEK design
- Available in 360°, 270° up, and 180° down
- Provides liquid impact at a low flow rate

Impact: Up to 5 lbs at 2.5 ft. (2.5 kg at 1 m)
Cleaning Range: 2.5 ft. (1 m)
Pressure: 80-1000 psi (5-80 bar)
Flow: 3.5-6 gpm (13-23 lpm)
Clearance: 1.75 in. (55 mm)
Cycle Time: 2-4 min.
- Ideal for wine barrel and drum cleaning

Systems

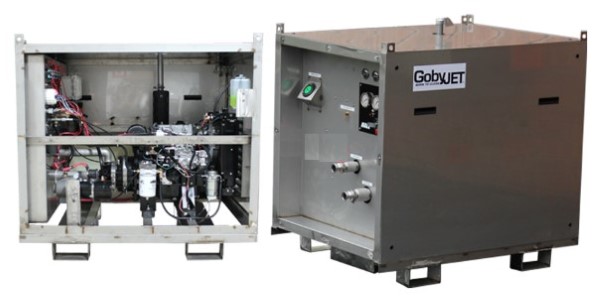

Outdoor portable tank cleaning system. Diesel powered to clean any where, at any time, keeping your crew out of the tank.

Affordable mobile CIP systems, customized to meet your needs, from single pump and skid combinations to uniquely engineered CIP systems.

Request a quote

Contact our experts to request a quote or discuss your tank cleaning solution.
