Tank cleaning equipment

Sani

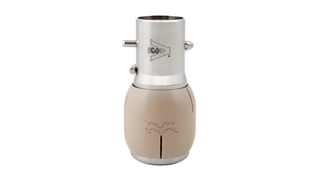

SaniMicro

The double ball bearing in the Toftejorg SaniMicro’s rotating head makes the device suitable for all industrial cleaning applications, including tanks, reactors, vessels and other containers up to 1.5 ft. in diameter – depending on dimensions and cleaning task.

SaniMidget SB

The Toftejorg SaniMidget SB is self-cleaning and self-draining with few parts and no welds. Its patent pending one-clip assembly offers easy installation, disassembly and inspection without compromising cleanability or drainability. The SaniMidget covers all internal tank surfaces with a 270° or 360° indexed cleaning pattern. The device is fully 3-A compliant.

Contact our experts

Request a quote or ask about a tank cleaning solution



How it works

Toftejorg rotary spray heads use the cleaning fluid itself to provide coverage and impact. The physical flow of the cleaning media causes the rotary spray head to rotate, with fan jets laying out a swirling pattern across the inner surface of the vessel.

These jets provide a combination of physical impact and a variable falling film of cleaning fluid that covers all the internal surfaces of the tank or reactor. The variable falling film has higher heat and mass transfer coefficients than the falling film produced by the static spray ball.

The spray head also cleans itself by directing the cleaning media through the rotating bearing track and onto the neck of the elongated head.

Rotary spray heads are a cost-effective alternative to traditional static spray balls because they use only small volumes of cleaning fluid at low pressure.

These devices are suitable for virtually all kinds of industrial cleaning, including tanks, reactors, vessels and other containers.



Performance reliability and long service life

Designed with minimal internal pressure loss, Toftejorg rotary spray heads rotate at pressures of less than 0.1 bar; however, the recommended operating pressure is between 2 and 3 bar. For over half a century, rotary spray head technology has proven successful in providing reliable and repeatable cleaning performance and a long service life.

Rotary spray heads are a cost-effective alternative to traditional static spray balls because they use only small volumes of cleaning fluid at low pressure.

These devices are suitable for virtually all kinds of industrial cleaning, including tanks, reactors, vessels and other containers.
