Liquid Desiccant Dehumidification

Alfa Laval Kathabar has 75 years’ worth of experience with liquid desiccant systems for dehumidification, cooling, and energy recovery. We offer reliable, precise, cost-effective control for manufacturing and processing operations sensitive to humidity, temperature, or microorganisms, including pharmaceutical, confectionery, brewing, hospital facilities, commercial bakeries, cold storage, gelatine, and meat processing, among others.

LDDe 640x360

Precise temperature and humidity control

  • Simultaneous dehumidification and direct air cooling with precise humidity control (+/- 1%RH)
  • Unrivalled energy efficiency; 100% modulation capacity
  • Microbiological decontamination: capture and neutralization of airborne pathogens
  • Fiberglass construction, for extended equipment life and reduced maintenance
  • Reliability: non-vaporizing liquid desiccant has an indefinite lifespan

Our complete line of liquid desiccant systems feature simple, flexible designs that can be customized according to your application specifications, including air flow capacities, heat sources, space limitations and power requirements.

Choose a centrally located regenerator with multiple conditioners, vertical or horizontal airflows, regeneration fueled by hot water, low-pressure steam, or waste heat.

For a thorough assessment of your dehumidification and temperature control needs, and to learn how we can help, contact us today.


Learn more


Kathabar FV conditioners

The Kathabar FV design offers the most efficient and effective latent and sensible performance, lowest unit air pressure drop, smallest footprint, and lowest equipment cost in our range.


Learn more


Kathabar FH conditioners

The Kathabar FH design is ideal for applications with space and height limitations that prohibit the use of the FV series.


Learn more


Kathabar FP regenerators

These packed-tower regenerators can be used with all Kathabar FV and FH conditioners. They are available in a range of sizes, with moisture removal capacities from 120 lb/hr to 6000 lb/hr.


Learn more


Kathabar SP system

A high-efficiency plug-and-play system with vertical airflow discharge. Designed for applications with airflow capacities from 1,500 CFM to 20,000 CFM.

Learn more





Temperature and humidity control for your application

Flexible, customisable Alfa Laval Kathabar solutions are perfect for a wide range of applications that require precise temperature and humidity control, including pharmaceutical, confectionery, brewing, hospital facilities, commercial bakeries, cold storage, gelatin, and meat processing, among others. Let us design your perfect solution.

kathabar-application-vignette





How it works

Alfa Laval Kathabar liquid desiccant dehumidification systems use Kathene, a non-toxic solution composed of lithium chloride salt and water, to absorb moisture from the air. Kathene does not vaporize and is not degraded by common airborne contaminants.



Kathene’s absorbency depends on the temperature and concentration of the solution, which can be adjusted to create any relative humidity level between 18% and 80%. For a given Kathene concentration, lower solution temperatures enable the conditioner to deliver cooler, dryer air.

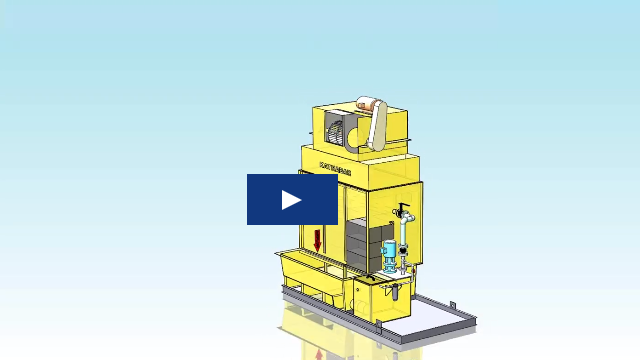

The basic elements of an Alfa Laval Kathabar system are illustrated below.

kathabar how it works

Kathene in the conditioner cools and dehumidifies air on contact. The continuous circulation of Kathene through a heat exchanger extracts energy from the air and transfers it to a coolant. By controlling the flow of coolant through the heat exchanger, the amount of heat extracted by the Alfa Laval Kathabar dehumidifier can be modulated to match the load.

As moisture is absorbed by the Kathene solution in the conditioner the solution becomes diluted. As the level in the conditioner rises, a portion of the solution is pumped to the regenerator, where the moisture is driven back out of the desiccant with heat. The Kathene is heated in the regenerator with the heat exchanger, creating an area of high vapor pressure. The Kathene meets the scavenger airstream and moisture is released from the desiccant into the air stream to be exhausted outside. This process is continuous, and constantly modulating the cooling and heating provides precise conditions for the process.

Service and spare parts

Partnering with Alfa Laval for the startup, support, service, and replacement parts of your Kathabar Liquid Desiccant Dehumidification system will ensure your dehumidification system is always working at top performance.

Performance audit
Equipment upgrades
Remote support
Commissioning
Preventive maintenance
Spare parts

The purest air – for the most critical applications

The Alfa Laval Pure Air dehumidification system is ideal for highly sensitive environments where temperature and humidity control are vital to human health and well-being, such as in hospital operating rooms or other healthcare facilities. Pure Air technology can eliminate microbial contamination from HVAC systems, as well as kill bacteria, mould, and viruses in the air. With proactive technology to aid in the prevention of Healthcare Associated Infection (HAI), Pure Air offers 99.999% efficacy in removing bacteria.


Learn more



Pure Air product page image 640x360.jpg

Documents

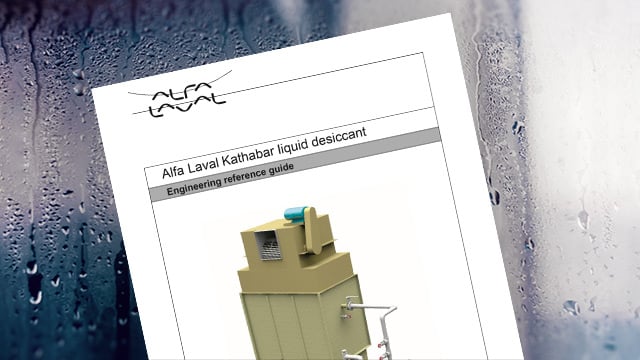

Download our liquid desiccant engineering guide

Get access to technical descriptions, drawing, images and a lot more

kathabar-engineering-guide-vignette










Contact us

Do you have a temperature or humidity challenge? Alfa Laval has a flexible solution to help you solve it – simply and efficiently, with minimal stress and cost.
