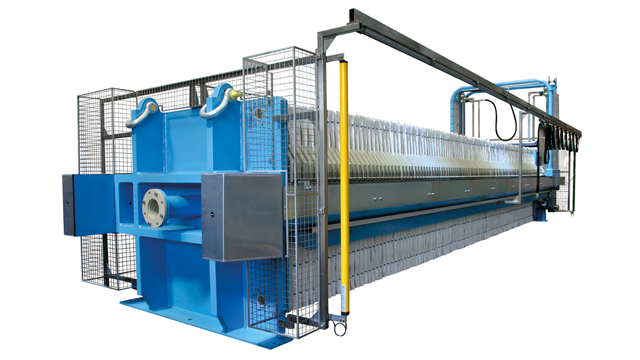

AS-H Plate Press

The best technology to achieve exceptional cake dry solids and the highest solids capture rate of any dewatering solution.

Superior dewatering performance

  • Batch dewatering technology with the driest cake vs. other methods
  • Available with fully automated plate separator
  • Robust sidebar frame design
  • Available with an inflatable membrane plate to achieve the highest dry solids
  • A number of safety features incorporated to protect operators

The Alfa Laval AS-H plate filter press is suitable for municipal biosolids sludge, water plant residuals, or industrial process and wastewater dewatering applications where a batch process is desired for the operation. Dry solids can be up to 40% dry solids on municipal / environmental applications and up to 90% or higher on some industrial applications with a solids capture typically > 99%. Polymer and power usage is also low and the Alfa Laval AS-H Plate filter press is available in a variety of configurations customized to your dewatering needs.

How it works

.

A plate press is a series of filter plates which are pressed together by hydraulic cylinders. The filter plates form a cavity or chamber where the filter cake (solid) will form.  The plates are clamped together under pressure from a hydraulic system.

The chambers of the plate press are gradually filled up with slurry via a feed pump. Under continuous and increasing feed pressure, cakes are formed from the outside inwards in the plate chambers. Eventually the slurry cannot be pumped in because filter cake occupies all of the spaces in between the chambers as the solid levels build up and the liquid drains from the press. At this point the filter plates are separated either by mechanical or manual means, usually one at a time, allowing the high solids filter cake to be discharged.

Meeting your exact requirements

 A selection of features and variety of sizes and configurations are available for the AS-H Plate Press:

  • Range includes manual, semi-automated, or fully automated plate press operation
  • Several plate sizes ranging from 300 x 300 millimeters up to 2 x 2 meters
  • Cake washing is available to displace soluble components in the cake
  • Air blowing of the cake is available to further remove moisture
  • Manual drip trays available for smaller sized presses
