Types of separation duties
Disc stack separators are generally used for commercial and industrial separation duties that involve liquid-liquid separation and liquid-solid separation.
- Liquid-liquid separation involves two immiscible liquids of different densities.
- Solid-liquid separation involves:
- removing solids from a liquid to recover valuable by-products and discharging the liquid for treatment as effluent;
- recovering a valuable liquid from solids and discharging solids for treatment as waste;
- recover both solids and liquids as valuable products; or,
- removing solids from a liquid before cleaning the liquid prior to discharge to prevent contamination to the environment.
- Liquid-liquid-solid separation involves the separation of three distinct phases, which is the most challenging separation duty. Here no other technology can compete with disc stack separation technology.
Designs for different separation duties

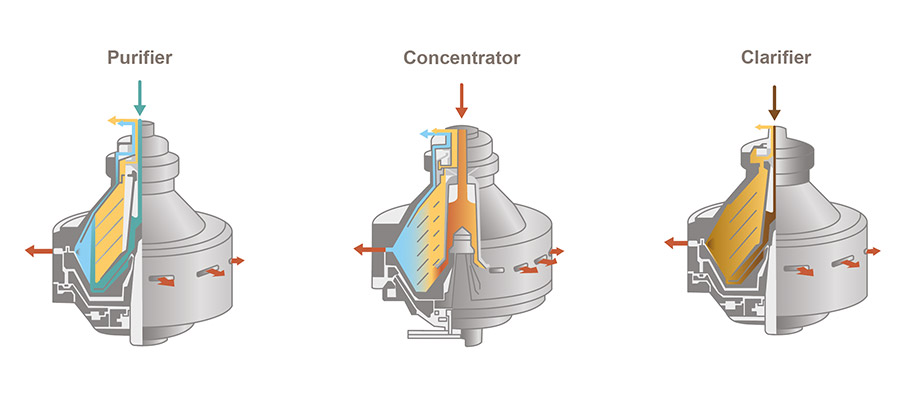

Generally speaking, there are three types of separators depending on the type of separation duty: clarifiers, purifiers, concentrators.

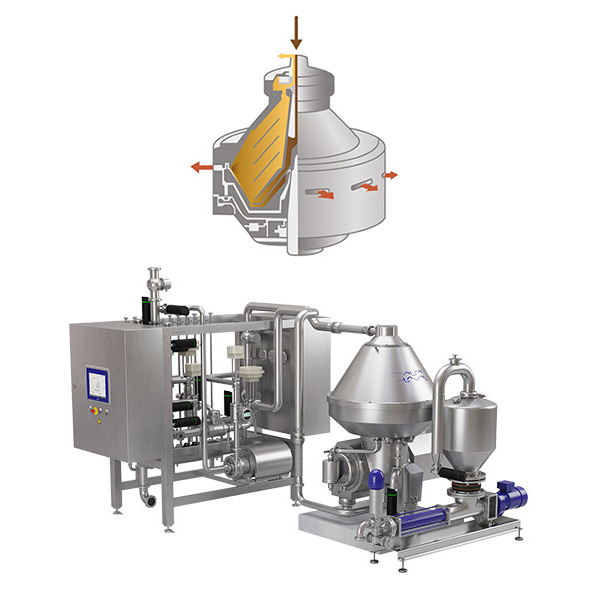

Clara 450 is an example of a separation system with a clarifier - used in the food, beverage and pharma industry.
A clarifier is a centrifugal separator for solid-liquid separation, that removes solids such as particles, sediments, oil, natural organic matter and color from process liquids. In doing so, the process liquid becomes clear.
Alfa Laval clarifiers are engineered for use in various applications within food and beverage, marine and industrial fermentation industries. For instance, in beverage applications clarifiers are used in processing of fruit juices, wine, tea and coffee. In industrial fermentation, clarifiers are a key component in microalgae, bacteria and yeast fermentation processes. In Marine industry clarifiers are applied for cleaning of scrubber water in the system for the cleaning of exhaust gasses.
A purifier is a centrifugal separator for liquid – liquid – solid separation, that separates two liquids of different densities, and a solids, such as water, oil, and fines, from each other. Using a purifier the light liquid phase is typically the large fraction which is meant to cleaned.
Alfa Laval purifiers are engineered for multiple applications across industries, such as food and beverage, marine and energy. These premium quality centrifugal separators are suitable for processing plants of any size. In food industry they are typically used in fats and edible oil processing, such as vegetable oils, lard, tallow and fish oil. In Marine purifiers are mainly used for the cleaning of engine lube oils.

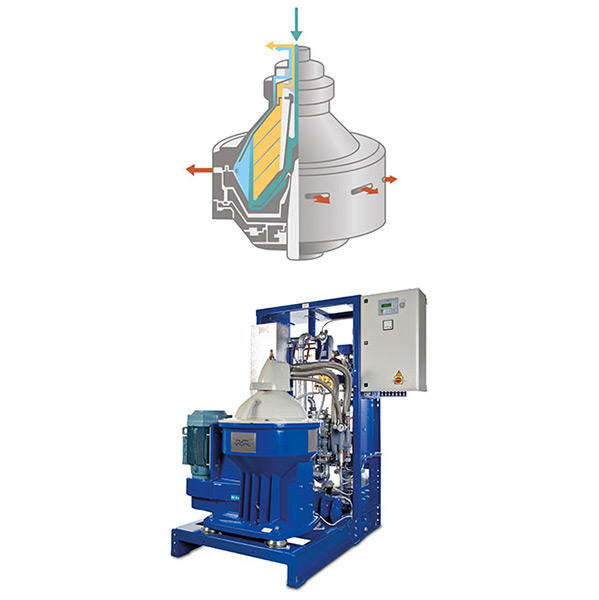

A Flex module typically includes a purifier for removing water from diesel oil or

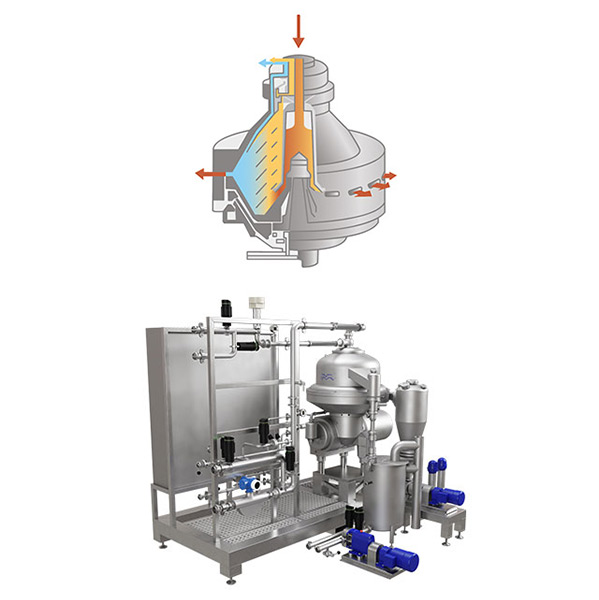

An AFPX system can be configured as a concentrator and used for fish and meat extraction processes.
The Alfa Laval concentrator is a centrifugal separator designed to separate three different phases, one solid phase and two liquid phases of different densities, and clean the densest/heaviest liquid phase.
Alfa Laval concentrators are widely used in various industries, such as food, beverage processing and marine applications. In vegetable oil and animal fat refining industries concentrators are used for processes continuous degumming, neutralization, dewaxing, and washing. In beverage processing they are used in deoiling and oil recovery applications, such as citrus juice de-oiling and cold pressed peel oil concentration and polishing. In Marine industry Alfa Laval concentrators are used in the cleaning of bilge water.
How it works
Separation technologies are essential to a broad range of industries — from food, beverage and pharma to marine and energy through to water and waste treatment. Various technologies are used for separating liquid from liquid and solids from liquids with the aim of producing cleaner substances, valuable by-products and less volume of waste to dispose.
