Alfa Laval finned tube air heat exchangers have a range of unique design features that set them apart on the market.
Combined wet and dry bulb cooling for minimized water consumption
Wherever water is available, we usually recommend our customers consider a cooling solution based on water cooling, such as our Wet Surface Air Coolers. In regions where water is available but limited and ambient temperatures fluctuate, a HybridCool solution that offers both dry and wet cooling can be a good option.
These systems combine a finned tube air heat exchanger for dry cooling with a Wet Surface Air Cooler for wet cooling, allowing operators to choose operating mode depending on the ambient temperature. During the cooler months of the year, the system can operate in dry mode to save water, and during the hot months wet operation can be engaged to ensure a low outlet temperature.
By combining the two technologies the overall efficiency of the system is high, system size is small, and both power and water consumption are kept to a minimum.
Ivanpah Solar facility
Slitted fin design maximizes heat transfer
Alfa Laval’s HyperFin slitted tube fins increase heat transfer compared to standard API 661 type fins, resulting in reduced size and cost of the cooling system.
The slits on the aluminium fins interrupt the air flowing over the fin surfaces. This prevents the forming of a stagnant layer of air on the fin surfaces, and thereby increases heat transfer. The impact on the pressure drop and required fan horsepower is minimal, keeping operating costs low.
Effectively prevents leaks from the plugs in the header box
Leaks from the plugs in the header box of air-cooled heat exchangers operating under high pressure is a well-known problem for plant owners around the world. Alfa Laval’s unique SealTight system effectively puts an end to this problem.

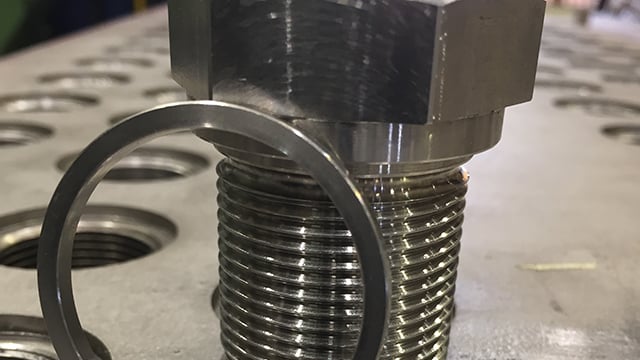

The SealTight system comprises specially designed plugs, plug gaskets, threading and seats, and offers a highly effective and reliable sealing. SealTight is available in a wide range of materials for different applications.
With SealTight you get a safer and more environmentally friendly plant. The avoided leaks reduce maintenance work, and when your heat exchangers need service, the plugs are easy to remove and replace without risk of over torquing.

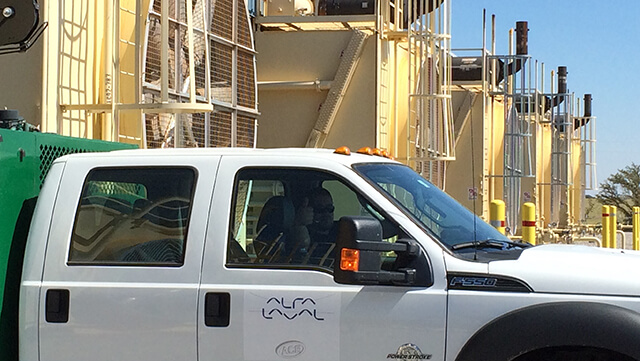

Qualified support at your facility
There is always a local team of Alfa Laval service engineers standing by to assist you at your facility at short notice. Our network of field technicians, service engineers, Service Centres and logistics hubs make sure you have quick access to qualified help and spare parts at all times, anywhere in the world.
