Bipod

Product benefits:

  • Fast, hands-free barrel cleaning: Place and clean
  • Industries used in: Primarily wine
  • Compatible tank cleaners: GJ BB and GJ 7

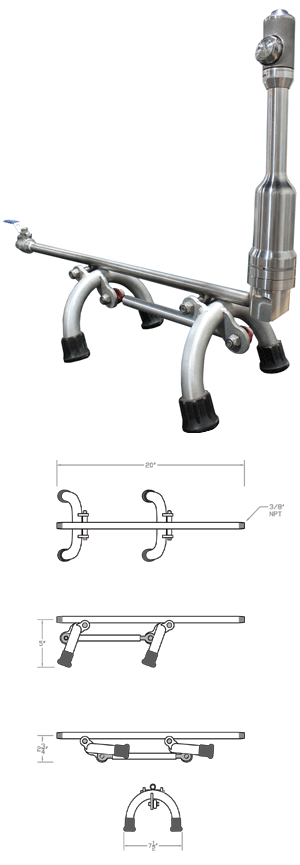

Specifications:

  • Materials: 316L Stainless Steel; Nylon Feet
  • Length: 20 in. (.5m)
  • Width: 7.5 in. (190 mm)
  • Height: 5 in. (130 mm)
  • Weight: 4 lbs (2 kg)
  • Inlet Connections: 3/8 in. (12 mm) NPT-Male

How it works:

The 3/8 in. NPT Male Inlet collar gets threaded on center feeding tube. The Alfa Laval tank cleaning machine is than threaded on the 3/8 in. NPT Male Inlet collar for a secure upright hold. The Alfa Laval tank cleaning machine is placed within the bung hole, with the legs folded back for extra clearance. Once under the barrel, the legs are pulled back and unfolded to rest either on the ground or the barrel beneath.
