Aalborg MPF Multi Fuel
The Aalborg MPF (Marine Para Flow) burner for dual-fuel firing of MDO, HFO, crude oil and fuel gas comes in roof orwall-fired designs. A low emission marine burner variety, Aalborg MPF-LE (LE for low emissions), is also available.
Extending the performance of your equipment
Our dedicated global service network supports you with parts and expertise, wherever you are, whenever you need it. By ensuring greater uptime, availability and optimization, we help bring you peace of mind, and maximize your return on investment. We can work with you to integrate our services into a Performance Agreement for predictable and worry-free operations.
The Aalborg MPF (Marine Para Flow) burner comes in roof or wall-fired designs, capable of handling MDO, HFO, crude oil or fuel gas in single fuel or simultaneous firing operation.

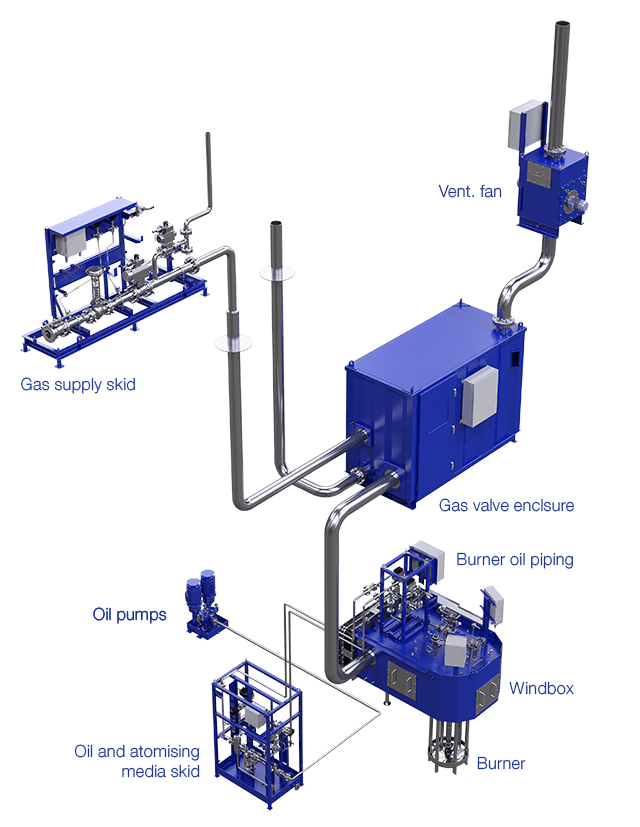

The burner assembly is provided as a complete module, incorporating dual redundant flame scanners, gas ring manifold and gas canes, oil gun and air register with all electrical components pre-cabled to the front plate-mounted junction box.In addition, all instrument air users are pre-tubed (SS) to a common manifold and regulator, also mounted on the frontplate.
Application specific designOur burner designs are application and project specific. They are based on proven designs combined with advanced com-bustion tuning via computational analysis.
Capacity range: 5 – 46 MW
The burner assembly is provided as a complete module, incorporating dual redundant flame scanners, internal gasring, oil gun and igniter with all electrical components pre-cabled to the front plate mounted SS junction box.
In addition, all instrument air users are pre-tubed (SS) to a common manifold, also mounted on the burner.
- Wide turndown range
- Low excess air operation
- Low atomizing steam consumption
- Retractable oil gun
- Direct spark ignition or oil pilot
- Capability of burning all grades of gaseous and liquid fuel oils
- Output of up to 46 MW
- Low maintenance
- No/low particulate emissions
- Ambient or preheated combustion air
- Retractable air register (multiple burners)
